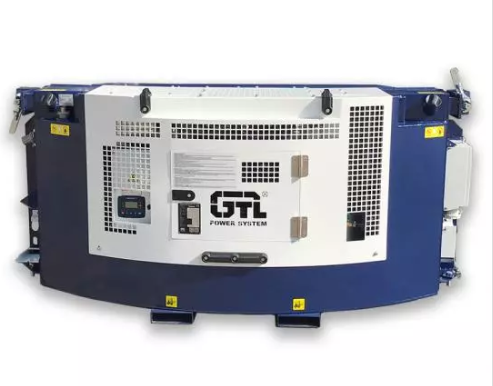

A 3-phase generator is a device that produces three separate alternating current (AC) voltages. These voltages are generated by three windings spaced 120 degrees apart, producing three unique AC waveforms that are out of phase with each other. This setup allows for more efficient power generation than single-phase systems.
In a single-phase generator, only one voltage waveform is produced. However, a 3-phase generator creates three waveforms that work together to provide smoother, more reliable power. This is especially important in industrial applications that require large amounts of power.
How does it work? The rotor, driven by the engine, spins inside the stator, creating a rotating magnetic field. As the rotor spins, it induces electrical current in the stator windings, resulting in three AC voltages that are 120 degrees apart.
The engine in a 3-phase generator converts fuel into mechanical energy to drive the alternator. It can run on diesel, gasoline, natural gas, or even biogas. Diesel is often preferred for its efficiency and availability, especially in remote or industrial settings.
The alternator is the core of the system, responsible for converting mechanical energy into electrical energy. It consists of two parts: the rotor and the stator. The rotor creates a rotating magnetic field, while the stator contains the windings where the electrical current is generated. As the rotor turns, it induces current in the stator’s windings, producing three distinct AC phases.
The voltage regulator ensures that the generator’s output remains consistent. It monitors the voltage levels and adjusts the rotor's magnetic field strength to maintain the desired voltage, especially when the load changes.
The control system manages the generator’s overall operation. It includes features like automatic start-stop, load sensing, and protection mechanisms against electrical issues such as over-voltage, under-voltage, and overheating. This system ensures the generator runs smoothly and safely.
A cooling system is crucial for keeping the engine and alternator from overheating. Air-cooled systems use fans to circulate air, while liquid-cooled systems circulate a coolant to absorb and dissipate heat, keeping temperatures in check during prolonged operation.
The fuel system stores and supplies fuel to the engine. For larger generators, an internal tank or an external fuel source (such as day tanks) ensures continuous operation. The size of the fuel tank determines how long the generator can run before needing to be refueled.
A 3-phase generator works by using an engine to drive the alternator's rotor. As the engine runs, the rotor spins inside the alternator, creating a rotating magnetic field. This magnetic field then interacts with the stator, which has three separate windings spaced 120 degrees apart.
As the rotor’s magnetic field passes over these windings, it induces an electrical current in each one. Each winding produces an alternating current (AC) waveform, but they are 120 degrees out of phase with each other. This results in three distinct phases of electricity, providing a smooth and efficient power output.
The power from a 3-phase generator is divided across the three phases. This design allows the generator to produce more power compared to a single-phase generator of the same size. Each phase carries part of the total power, ensuring a steady and continuous flow.
In single-phase generators, power fluctuates because only one phase is generating electricity. In contrast, 3-phase generators provide a more stable and efficient power supply. This efficiency makes 3-phase systems ideal for industrial machinery and large equipment that need continuous and reliable power.
One key difference in 3-phase systems is the distinction between line voltage and phase voltage. Line voltage refers to the voltage between any two phases, and it is typically higher than the voltage between one phase and neutral (phase voltage).
The relationship between line voltage and phase voltage depends on the type of connection used in the generator. For example:
In a star (Y) connection, the line voltage is √3 times the phase voltage.
In a delta (Δ) connection, the line voltage is equal to the phase voltage.
Common voltage ratings for 3-phase generators include 208V, 240V, and 277/480V. These ratings vary based on the location and application, with industrial systems often using higher voltages like 480V to power large equipment.
3-phase generators play a crucial role in powering large machinery in factories, mines, and manufacturing plants. These generators provide the consistent and high-power output required for heavy equipment.
For example, industrial motors, conveyor belts, and large pumps all rely on the steady and efficient power supplied by 3-phase generators. They ensure that these machines operate smoothly, even under high demand, making them essential in production lines and processing operations.
In commercial settings, 3-phase generators are commonly used in shopping centers, office buildings, and hotels. They help power systems that require a lot of energy, such as HVAC systems, elevators, and lighting.
These generators ensure that commercial buildings remain operational and comfortable, even during power outages. The high power output allows for the simultaneous running of multiple systems, preventing disruptions and ensuring safety.
Hospitals, data centers, and telecommunications rely on 3-phase generators to provide uninterrupted power. These facilities must operate 24/7, and even a brief power outage can lead to severe consequences.
For example, hospitals rely on continuous power to support life-saving equipment, while data centers need a steady flow of electricity to keep servers running. 3-phase generators are essential in ensuring these critical operations never stop.
In areas where access to the power grid is limited, such as construction sites, oil fields, and remote communities, 3-phase generators become the primary power source. They provide the necessary electricity for heavy equipment and operations in these off-grid locations.
For instance, on a construction site, 3-phase generators power everything from cranes to concrete mixers. Their ability to deliver reliable power in challenging environments makes them indispensable for remote operations.
3-phase generators can deliver significantly more power than single-phase generators. A single-phase generator produces power through just one waveform, while a 3-phase generator uses three, which means it can handle much higher loads.
For high-power applications like industrial machinery or large-scale equipment, 3-phase generators are ideal. The power is distributed evenly across all three phases, making it more reliable and stable. Single-phase systems just can’t match the efficiency of 3-phase systems when it comes to heavy-duty use.
One of the key advantages of 3-phase generators is their efficiency. Unlike single-phase systems, which experience power fluctuations, 3-phase generators provide smooth and consistent power output. This results in fewer disruptions and better performance for the connected equipment.
With 3-phase generators, there are reduced voltage drops, meaning that electrical equipment lasts longer. This is especially crucial in high-demand settings where consistent power is critical.
While 3-phase generators are more expensive upfront, they tend to be more cost-effective in the long run. Their higher power output and efficiency mean they can handle larger loads without stressing the system. This reduces the need for additional backup power sources, making them more economical in industries where power demand is high.
In contrast, single-phase generators may be cheaper initially but can incur more operational costs over time, especially when handling large loads or equipment with high power needs.
3-phase generators are far more efficient than single-phase generators when it comes to power generation. They can produce more power using the same amount of space and resources. This efficiency comes from the fact that they distribute the load across three phases, making them ideal for applications that require high amounts of electricity.
These generators can handle larger electrical loads, which is why they are widely used in industrial settings. For example, large machinery in factories, motors, and other heavy equipment rely on the consistent power supply from 3-phase generators.
One of the biggest benefits of 3-phase generators is their ability to provide stable power delivery. Unlike single-phase systems, 3-phase systems experience fewer power fluctuations. This means equipment connected to a 3-phase generator experiences less wear and tear. In industries where continuous power is required, this constant and reliable power supply ensures that machines run smoothly, preventing unnecessary breakdowns.
3-phase generators also reduce voltage drops, which improves overall performance and extends the life of electrical equipment.
3-phase generators are incredibly versatile. They can be used in a wide variety of settings, from small offices to large factories, making them a popular choice for both commercial and industrial use. Their flexibility comes from their ability to operate at different voltage levels, such as 480V for commercial use and 277V for residential applications.
This adaptability allows them to power everything from small-scale devices to large industrial machines, providing consistent and reliable energy across various environments.
Regular maintenance is crucial to keep 3-phase generators running smoothly. Key tasks include inspecting the alternator, fuel system, and cooling system. Checking for wear and tear on the alternator ensures the generator runs efficiently, while monitoring the fuel system prevents clogs or leaks.
The cooling system is especially important. Keeping it clean ensures that the engine doesn’t overheat. To maintain it, remove any debris and check the coolant levels regularly. You should also inspect the radiator and fan to ensure they are functioning properly.
When a generator experiences issues, it’s often linked to common components like the voltage regulator or alternator. If you notice voltage fluctuations or power drops, start by checking the voltage regulator. A faulty regulator can cause voltage instability.
For fuel system issues, inspect fuel lines for blockages and check the fuel filter. If the generator isn’t generating enough power, this might point to a problem with the alternator or its connections. Regularly testing and troubleshooting these components helps keep the generator in top condition.
To extend the lifespan of a 3-phase generator, stick to a regular maintenance schedule. Routine checks prevent small issues from turning into bigger problems.
Additionally, reducing wear and tear on moving parts, like the engine and alternator, can significantly prolong the generator’s life. This can be done by avoiding overloading the generator and ensuring it operates within its recommended limits.
When using a 3-phase generator, electrical safety is essential. Always ensure the generator is properly grounded to prevent electric shock. Use insulated tools when working around live components, and never attempt to repair electrical parts without turning off the generator.
Protective devices, such as circuit breakers, should be in place to prevent overloads and short circuits. If there is an issue with voltage regulation, such as surges or drops, it’s vital to turn off the generator immediately and address the problem to avoid damaging connected equipment.
Keep the generator in a well-ventilated area to prevent overheating and the buildup of harmful fumes, especially for diesel-powered generators. Ensure there is enough airflow around the engine and alternator. If the generator is liquid-cooled, regularly check the coolant levels to avoid overheating.
For outdoor use, make sure the generator is placed on a stable surface and protected from the elements. This will not only improve its lifespan but also prevent accidents caused by environmental factors, such as heavy rain or high winds.
If you’re using a 3-phase generator in a worksite, it’s important to set up clear safety protocols. Use proper protective gear such as gloves, eye protection, and hearing protection. Ensure workers are trained on the safe operation of the generator, including how to safely start, operate, and shut it down.
Clear signage should be placed around the generator, indicating potential hazards. Keep the work area organized to avoid tripping or electrical accidents. Proper safety measures will keep everyone safe while ensuring the generator operates smoothly.
When selecting a 3-phase generator, start by assessing your power needs. Calculate the total load your generator will be handling. Consider the equipment that will be running on it and estimate their combined power requirements. This will help you determine the generator’s wattage capacity.
Another important factor is the fuel type. Diesel, gasoline, natural gas, and biogas are common options. Diesel generators are often the most efficient for heavy-duty applications, but the fuel cost and availability might vary. Gasoline generators tend to be cheaper upfront but are less fuel-efficient over time.
Selecting the right size generator is crucial. A generator that’s too small will struggle to meet power demands, while one that’s too large may waste energy and increase costs. Choose a generator that fits your typical load requirements, but consider a slight margin for unexpected power spikes.
Balancing efficiency and power output is key. While larger generators may provide more power, they often consume more fuel. Look for models that offer a good balance between efficient power output and fuel consumption, especially if you're looking to save on long-term operational costs.
Not all generators are created equal, so it’s important to choose a reputable brand. Established brands usually provide reliable performance and are known for quality manufacturing. They also offer better customer support.
Don’t forget to check the warranty and after-sales support. A good warranty protects your investment and ensures you get the help you need if anything goes wrong. A comprehensive warranty can also save you money on repairs or replacements in the future.
3-phase generators are crucial for industries requiring reliable, high-power systems. They provide stable power for large equipment, making them ideal for industrial, commercial, and critical facilities.
When choosing between 3-phase and single-phase generators, consider your power needs and application.
For more details or advice, consult an expert to ensure you select the right generator.
A: A 3-phase generator produces three separate AC waveforms, providing more power and stability, while a single-phase generator only uses one waveform.
A: 3-phase generators deliver smoother, more constant power, reducing voltage fluctuations and providing better performance, especially for heavy loads.
A: 3-phase generators are used in industries, commercial buildings, hospitals, and remote locations where high power and reliability are required.
A: Yes, but they are generally more suited for large homes or properties with significant power demands.
A: The voltage regulator in a 3-phase generator adjusts the rotor's magnetic field, ensuring a stable voltage even as load conditions change.
