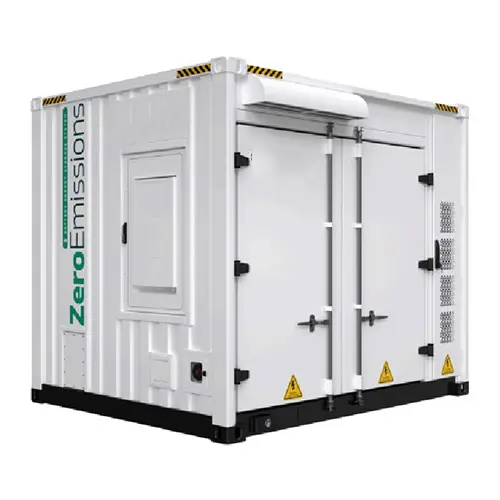

GTL G400B5ZE 400 kWh 50Hz 3 Phase BESS

Power Rating: 200 kW
Capacity: 422 kWh
Frequency: 50Hz
Phase: 3 Phase

Voltage: 380-415V
Battery Lifespan: 7000
Noise Level: 70 dB(A)
Ingress Protection: IP54

Availability:

Quantity:



Inquiry Add to Basket

Emission:
Please Select

Product Description

GTL Power Generation G400B5ZE 400 kWh Battery Energy Storage System Specification

The GTL G400B5ZE is a 50Hz 3 phase battery energy storage system (BESS) with a capacity of 400 kWh and a power rating of 200 kW

Delivering 200 kW of power and 400 kWh of energy capacity, the GTL G400B5ZE is designed for medium-scale energy requirements. It is housed in a compact 10-foot ISO standard container, making it ideal where space is limited. Featuring high-performance lithium-ion batteries and intelligent control systems, it supports peak load management, backup power, and renewable integration with ease.

Key Features:

LFP Battery Technology: High energy density, long cycle life, and efficient charging with lithium iron phosphate cells.
Liquid Cooling: Maintains optimal battery performance across wide temperature ranges.
Certified System: Fully compliant at both system and component levels.
Advanced Safety: Includes multi-level fire detection and suppression with real-time thermal monitoring.
High Power Density: Compact, integrated system with AC output for strong performance.
Plug & Play Installation: Quick and easy site integration with minimal setup.
Transport-Ready Design: IP54-rated container for durable, safe handling and servicing.
Grid-Ready Flexibility: Supports both on-grid and off-grid applications.
Global Support: Backed by GTL' warranty and international service network.
Expert Integration: Supported by GTL' extensive distributed energy resources (DER) expertise.
Modular Scalability: Available in flexible 2-hour and 4-hour configurations to match site needs.

Benefits:

Energy Independence: Reduce reliance on the grid and support sustainable operations.
Renewable Integration: Store and release solar or wind energy when needed.
Load Management: Respond rapidly to shifts in energy demand and supply.
Peak Shaving: Lower energy costs by managing peak demand periods.
Grid Stability: Maintain consistent, reliable power flow and voltage.
Backup Power: Ensure continuity during grid outages or disruptions.
EV Charging Support: Optimise energy use for electric vehicle infrastructure.
Future-Ready: Adaptable to evolving energy systems and market conditions.

Applications:

Backup Power: Maintain reliable electricity supply during outages.
Off-Grid Power: Provide energy in remote or isolated locations.
Energy Arbitrage: Buy and store energy when prices are low, sell or use when high.
Peak Shaving: Offset grid use during high-demand or high-cost periods.
Renewable Shifting: Store excess solar or wind energy for later use.
EV Charging Support: Reinforce infrastructure to manage increased EV demand.
Demand Management: Balance supply and demand to maintain system stability.
Microgrid Support: Enable self-sufficient local grids with autonomous operation.

Power Rating	200 kW
Capacity	422 kWh
Frequency	50Hz
Phase	3 Phase
Voltage	380-415V
Battery Lifespan	7000
Noise Level	70 dB(A)
Ingress Protection	IP54
Footprint	10-foot ISO Standard Container
Dimensions (L x W x H)	2991mm x 2588mm x 2591mm
Weight	8500kg
Warranty	Standard Product Warranty: 3 Years / Battery Performance Warranty: 10 Years
