GTL Power has provided two 1000kVA parallel - connected diesel - generator Powered by the Cummins engine QSK38-G1 to Singapore.

GTL Power has provided two 1000kVA parallel-connected diesel generators powered by the Cummins engine QSK38-G1 to Singapore.

Where:

Singapore

Power range:

CCW-1000T5S-NR3

Customer’s need:

Singapore client requires two 1000kVA parallel-connected diesel generators powered by the Cummins engine QSK38-G1 to serve as the prime power source.

Features:

GTL Intelligent Power Solution with Advanced Automatic Paralleling Logic. Featuring an externally mounted muffler, containerised design, Heavy-duty air filter, and a Large capacity integrated fuel tank.

GTL, a pioneer in innovative power generation technology, has delivered two high-capacity CCW-1000T5S-NR3 generator sets, featuring a groundbreaking intelligent control system. The key advancement is its sophisticated automatic paralleling logic based on generator circuit breaker (GCB) status and load demand, designed to optimise fuel efficiency, reduce maintenance, and extend engine life.

The system's core intelligence lies in its automatic decision-making process:

When the single-unit load exceeds 640kW, the system automatically initiates the paralleling of the second unit. This ensures ample power reserve for peak demands, enhances operational stability, and distributes the workload evenly across both generators. When the total load drops below 480kW, the system automatically disconnects one unit, allowing a single generator to efficiently handle the reduced load.

This is more than just delivering power; it's about delivering smart energy management. By implementing this intelligent GCB-based paralleling logic, we are giving our clients a system that automatically optimises itself for both performance and economy. It eliminates manual intervention and ensures the power plant always operates at its most efficient point, whether that requires one unit or two. This delivery underscores GTL's commitment to integrating advanced control logic with robust hardware, providing clients with next-generation power solutions that are not only powerful but also intelligent and cost-effective.

Technical data:

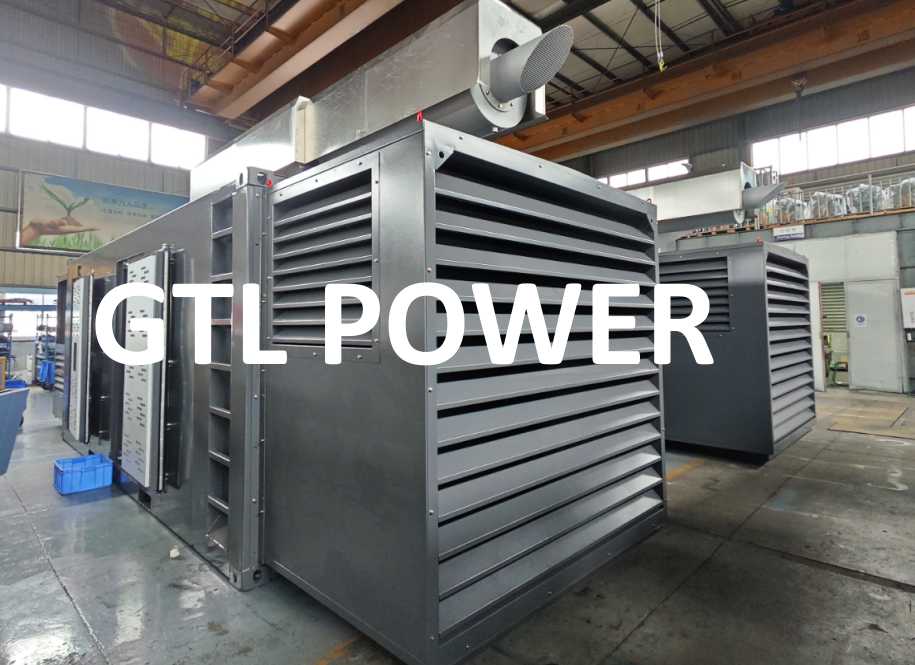

Diesel generator: CCW-1000T5S-NR3

1. Prime power: 1000KVA 800KW

2. Engine: Cummins QSK38-G1

3. Alternator: Guericke GRK800D4

4. Controller: Deepsea DSE8610 MKII

5. Voltage:415V 50Hz
