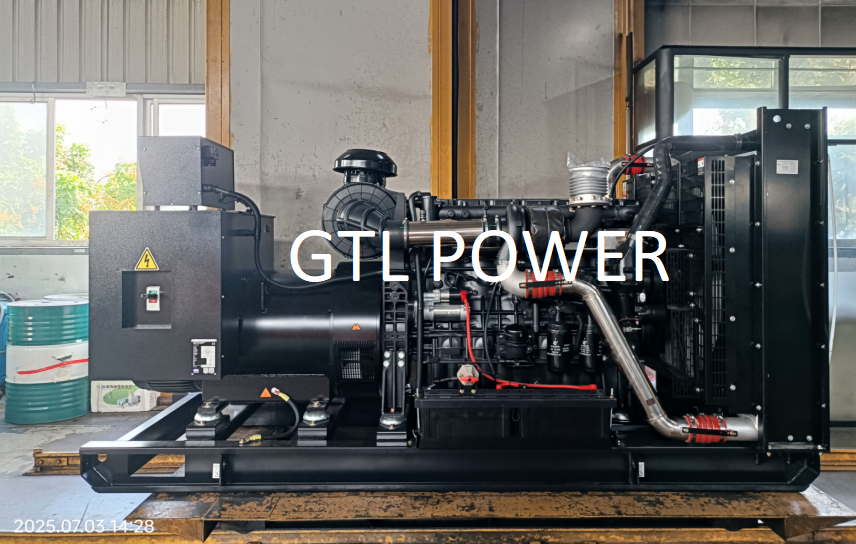

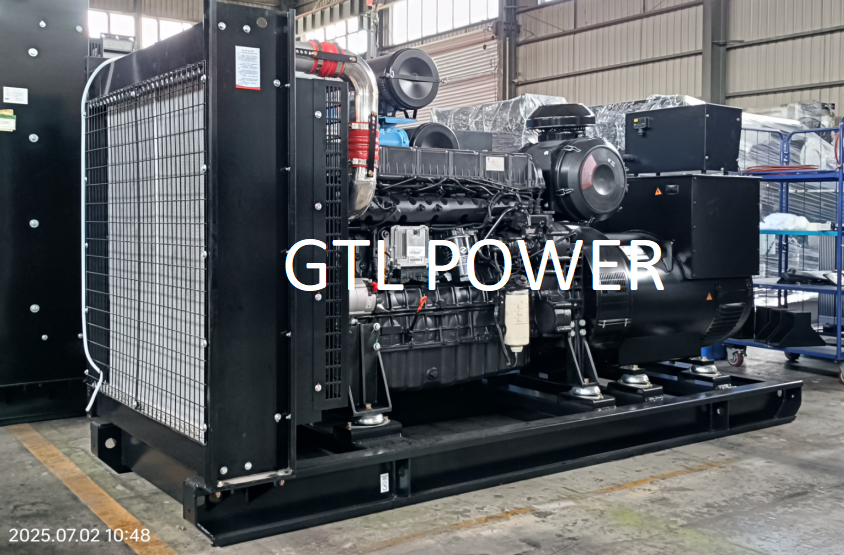

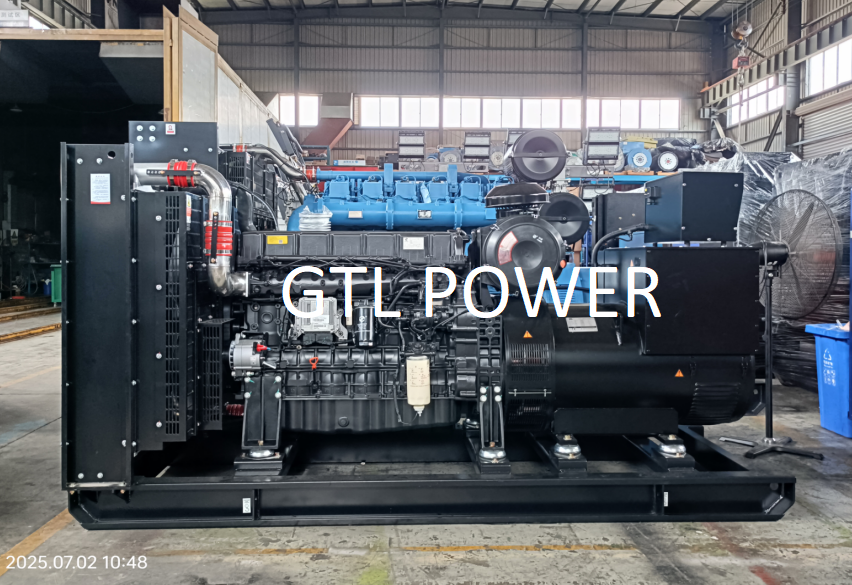

Today, GTL delivered out a 500kVA diesel generator set equipped with an SDEC engine, which is intended for use as a backup power source for Quanzhou Tongsheng Packaging Factory.

Today, GTL delivered out a 500kVA diesel generator set equipped with an SDEC engine, which is intended for use as a backup power source for Quanzhou Tongsheng Packaging Factory.

Where:

China Quanzhou

Power range:

SCW-500T5

Customer’s need:

Quanzhou Tongsheng Packaging Factory needs to purchase a diesel generator set with a main power of 500kVA as a backup power source, and requires on-site installation and commissioning.

Features:

SCW-500T5

Optimized structural design：4 - valve structure, high - precision noise - reducing gear system, optimized combustion, and excellent NVH (noise, vibration, and harshness) indicators.

High durability： The engine block and cylinder head are made of the latest - generation high - strength alloy cast iron material, and the overhaul period of key components is up to 20000h.

Good fuel economy： The fuel consumption index in the 60 - 100% load range leads the industry.

Strong cold-start and high altitude ability： The National III model can meet the normal start-up in the environment of - 40°C, and has passed the 5000-meter military standard GJB-235 B certification test. Some models can achieve no power reduction at 3000 meters.

Strong one-step load-taking ability： It can easily achieve 75% loading. The integral cylinder head and unique water-air passage design eliminate the three leaks (oil leakage, water leakage, and air leakage).

This engine is recognized by the market for its high efficiency, high reliability, energy conservation, environmental protection, and strong loading capabilities.

Technical data:

Diesel generator: SCW-500T5

1. Prime power: 500KVA 400KW

2. Engine: SDEC / 6ETAA12.8-G310

3. Alternator: GTL / GTL-400-4

4. Controller: HGM6110CAN

5. Voltage: 380/220V
