GTL Delivers Heavy-Duty 4LTHB7+ Hydraulic Light Towers for -50°C Canadian Mining Operations

Illuminating the Arctic Frontier: GTL Ships Heavy-Duty 4LTHB7+ Hydraulic Light Towers Built for Canada's -50°C Extreme Mining Operations

Where: Canada

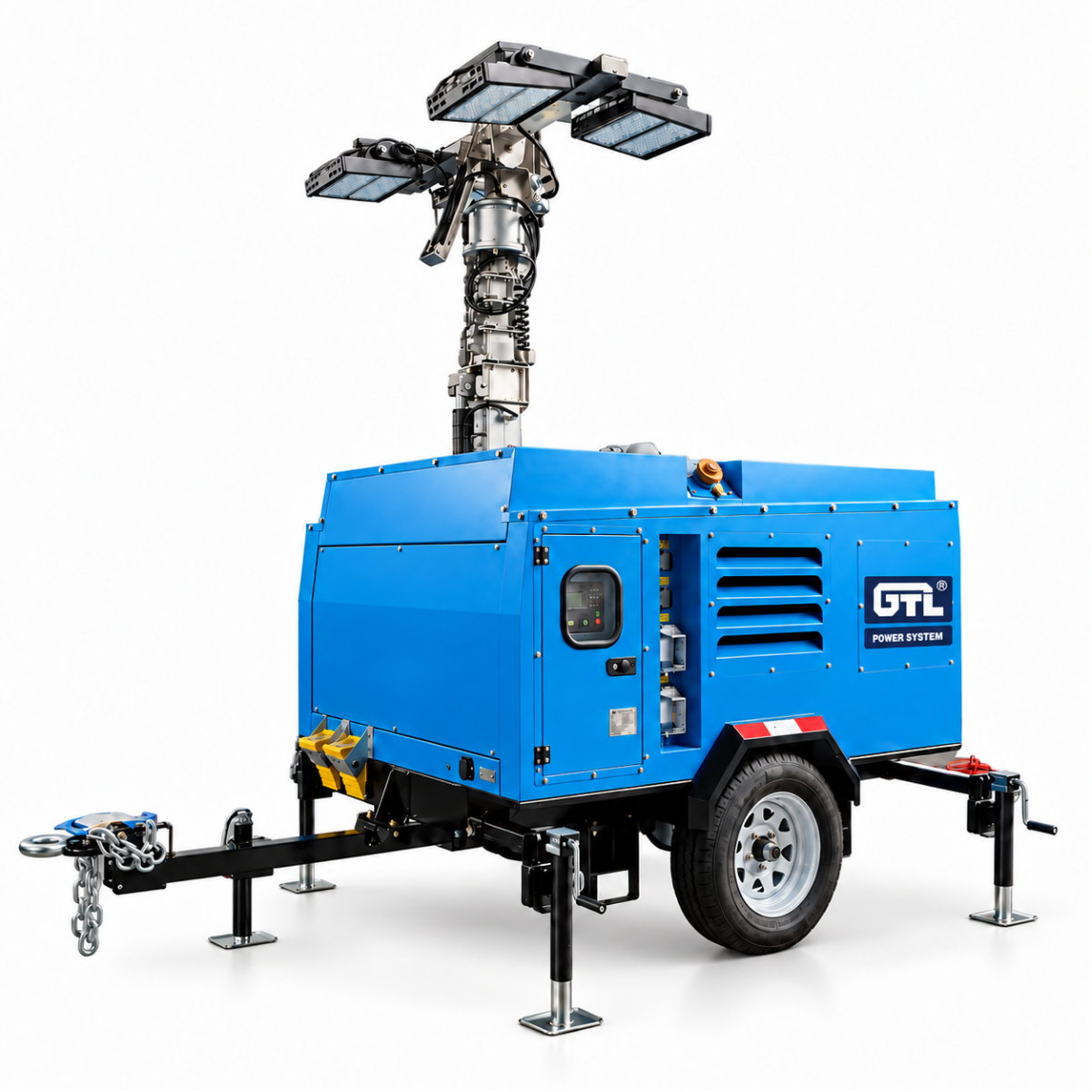

Power range: 4LTHB7+ Heavy-Duty Mobile Hydraulic Light Tower (18 kW Prime Power / 23 kW Alternator)

Customer’s need: A prominent Canadian procurement partner supporting major oil sands and mining operations in Alberta, required heavy-duty mobile LED lighting towers capable of non-stop 24/7 reliability in brutal Arctic conditions down to -50°C (with wind chill). Facing prohibitive 12+ month lead times from traditional North American suppliers, the client turned to GTL for a customized, high-specification solution. GTL engineered and delivered the rugged 4LTHB7+ lighting tower, fully compliant with North American standards (EPA Tier 4 Final, CSA-certified LED lamps, and GFCI weather-proof receptacles) and equipped with an extreme cold-weather package. The outstanding on-site performance and ultra-fast delivery timeline directly earned GTL rapid repeat orders.

Features:

1. Extreme Cold Weather Package (-50°C Sub-Zero Capability): Purpose-built for harsh Canadian winters with a multi-stage thermal defense system, including a diesel-fired water jacket heater, engine oil sump pre-heater, intake air pre-heater system, and specialized low-temperature fluids. Ensures instantaneous, dependable one-touch starting even at -50°C.

2. 10 kW Built-in Smart Load Bank & Automatic Load System: Equipped with an integrated 10 kW smart load bank that automatically engages during light-load or lamp-only duty. This completely prevents engine 'wet stacking', unburned fuel accumulation, and cylinder glazing in extreme cold, maximizing engine combustion efficiency and extending engine lifespan.

3. Ultra-Bright CSA-Certified LED Lighting (210,000 Lumens): Features 4 × 350W heavy-duty LED floodlights with high luminous efficiency (150 lm/W), generating an immense 210,000 total lumens. Delivers broad illumination coverage of up to 6,836 m² (average 20 lux) with IP67 weatherproof protection and a certified operating range from -50°C to +50°C.

4. Heavy-Duty 7-Meter Hydraulic Mast & 340° Rotation: Equipped with a rugged 7-meter hydraulic telescoping mast with 340° manual rotation and up to 80 km/h wind resistance. Enables effortless single-operator setup and precise illumination targeting across uneven mining terrains.

5. 110% Fully Bunded Environmental Fluid Containment: Integrated 280–300 L (74–79 Gal) containment basin safely captures 110% of all onboard fluids (fuel, engine oil, and coolant), fully complying with Canada's stringent environmental safety and zero-spill regulations for sensitive ecological zones.

6. Massive 223 L Fuel Tank & Dual-Duty Auxiliary Power: A 223 L (59 Gal) fuel tank offers extraordinary extended runtime (over 600 hours on lighting load at an economical 0.37 L/h fuel rate). Offers dual functionality with 13 kW auxiliary power output and North American standard twist-lock (120/240V 20A/30A) and GFCI (120V 20A/30A) weather-protected sockets to power auxiliary site tools.

Technologically Advanced:

① Kohler KDI1903TCR Turbo Diesel Power: Powered by an EPA Tier 4 Final certified 3-cylinder water-cooled Kohler engine (1.861 L displacement, 1800 rpm, ECU electronic governor) with high-pressure common-rail turbocharging, delivering 37 kW gross rating with exceptional thermal efficiency and ultra-low emissions.

② Leroy Somer TAL A42 A-S JM 1/4 Alternator: Premium 4-pole industrial brushless alternator with Class H insulation, IP23 enclosure, and 23 kW rated capacity. Engineered with superior motor-starting capabilities and exceptional voltage stability under dynamic loads.

③ ComAp InteliLite4 AMF25 Smart Controller with 4G-GPS: Cutting-edge digital control platform supporting automated mains failure detection, comprehensive fault diagnostics, and remote telematics via 4G-GPS module. Allows operators to monitor fleet location, fuel levels, and operational metrics remotely in real time.

④ Heavy-Duty DOT-Standard Site Trailer Chassis: Features double-eye leaf spring suspension, 165R13LT all-terrain tires, galvanized steel canopy with durable electrostatic powder coating, and dual North American coupling options (2" ball hitch & heavy-duty pintle tow ring) for seamless towing across rugged mining haul roads.
