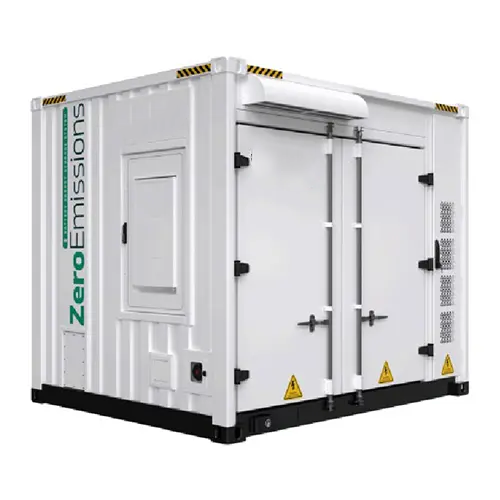

How can utility grids and commercial sites stay resilient when renewable energy sources like wind and solar fluctuate? Battery Energy Storage Systems (BESS) offer the definitive solution. They function as the vital backbone of modern power grids. This article breaks down the essential battery energy storage system components. You will discover how each critical part dictates system efficiency, long-term safety, and lifecycle costs.
● Modern BESS setups rely on a highly sophisticated infrastructure, moving far beyond basic battery cell chemistry.
● The structural hierarchy scales seamlessly from single cells to modules, racks, and megawatt-scale arrays.
● The Power Conversion System (PCS) serves as the critical bidirectional bridge between DC and AC power grids.
● The Battery Management System (BMS) acts as a digital sentinel, tracking real-time safety, cell balancing, and states of health.
● Advanced Thermal Management Systems mitigate dangerous hot spots and prevent catastrophic thermal runaway events.
Every energy storage system begins at the foundational level with the battery cell. This chemical core determines the overall performance metrics of the setup. Integrators select different chemistries based on specific project needs. Lithium-ion variants dominate the market due to high energy density. Flow batteries offer exceptional longevity for long-duration needs. Sodium-sulfur options serve high-temperature grid applications well.
The inherent cell chemistry dictates both the C-rate and total cycle life. The C-rate governs how quickly a cell charges or discharges. A 1C rate means the cell delivers full capacity in one hour. Higher C-rates allow rapid response but generate significant internal heat. Over time, recurring charge cycles degrade the chemical internal structures. This degradation gradually reduces total storage capacity.
Engineers rarely use single cells in heavy industrial environments. They group multiple cells in parallel configurations to scale system capacity. This arrangement pools individual Ampere-hours (Ah) together into a larger functional block. A parallel connection keeps the voltage identical to a single cell while increasing total current capability. This approach keeps baseline DC voltages low during initial collection stages, reducing immediate electrical stress.
Safety protocols begin right at this group level. High-quality cells feature internal Current Interruption Devices (CIDs). If internal pressure spikes from a short circuit or overheating, the CID disconnects the failing cell. This localized isolation prevents a single failure from spreading through the whole group.
Modules represent the first major physical packaging level. Manufacturers enclose logical cell groups into rigid, protective casings. These structures shield sensitive cells from heavy vibrations, physical impacts, and mechanical stress. Robust module walls ensure uniform pressure across cell surfaces, which optimizes chemical performance.
Modules do more than provide physical protection. They incorporate localized sensory wiring. Integrated sensors continuously track terminal voltages and surface temperatures. This granular data feeds directly into monitoring networks, catching localized anomalies before they escalate.
Racks are the standard physical building blocks for utility-scale installations. Technicians stack multiple battery modules vertically inside durable steel enclosures. Inside each rack, heavy-duty DC busbars connect modules in series. Connecting modules in series elevates the voltage to the high thresholds required by industrial inverters.
Every rack operates with its own built-in circuit protection. Dedicated fuses and circuit breakers isolate the rack if overcurrent events occur. This compartmentalization ensures a single electrical fault only takes down one rack, leaving the rest of the facility operational.
To reach megawatt-hour (MWh) capacity, projects combine dozens of racks in parallel. This massive configuration creates a comprehensive battery bank or array. Large DC combiner boxes aggregate the power lines from each rack row. These boxes streamline the high-voltage DC wiring before sending it to conversion equipment.
Operating at this scale requires strict physical engineering. Large isolation switches allow maintenance teams to de-energize specific sections safely. Design blueprints must include precise safety spacing between rack rows. Proper spacing prevents thermal radiation from transferring between units during a fire, complying with strict structural codes.
The choice between series and parallel physical arrangements directly alters how an array performs over time. Physical configurations determine overall round-trip efficiency (RTE). RTE measures the percentage of energy retrieved relative to the amount stored. Poor topology design increases internal resistance, which wastes valuable energy as heat.
Topology Level | Primary Metric Scaled | Main Engineering Challenge | Primary Benefit |
Cell Group | Capacity (Ah) | Managing circulating currents | Low baseline voltage |
Module | Structural strength | Localized thermal tracking | Vibration resilience |
Rack | Voltage（V） | High-voltage insulation | Standardized deployment |
Array | Total Energy (MWh) | Balancing parallel rack rows | Megawatt-scale utility support |
Physical layouts also influence how quickly the system degrades. Imbalanced topologies cause certain racks to work harder than others. These overworked units experience accelerated aging, which drags down the lifespan of the entire installation.
Note: When designing large-scale sites, engineers should minimize the physical length of DC busbars to reduce line resistance and maximize round-trip efficiency.
Batteries operate entirely on Direct Current (DC), but utility grids run on Alternating Current (AC). The Power Conversion System (PCS) serves as the bidirectional electronic bridge between these two formats. When the system charges, the PCS acts as a rectifier. It takes AC power from the grid and converts it to DC for storage.
When the grid requires support, the PCS reverses its operation. It functions as an inverter, transforming stored DC energy into synchronized AC power. This transition occurs within milliseconds, providing vital support during unexpected grid disturbances.
Standard energy systems traditionally rely on grid-following inverters. These systems require an existing external voltage signal from the utility grid to operate. They synchronize their output frequency directly with the prevailing grid conditions.
Advanced modern facilities deploy grid-forming power electronics. These smart systems can create an independent voltage and frequency reference on their own. This capability allows them to stabilize weak local grids, manage remote microgrids, and provide black-start capabilities to restart power grids after widespread blackouts.
PCS efficiency numbers directly modify the Levelized Cost of Storage (LCOS). Inefficient power electronics generate excessive heat during conversion cycles. These conversion losses represent wasted energy that cannot be sold back to the market, directly lowering project returns.
High-efficiency conversion hardware minimizes these thermal losses. Reducing internal heat lowers the cooling load on local HVAC equipment. This reduction lowering operational costs and optimizes the long-term return on investment for asset owners.
The Battery Management System (BMS) operates as the intelligent digital sentinel of the installation. It uses a structured three-tier control hierarchy to ensure complete operational safety. At the lowest level, Battery Module Units (BMUs) act as slave controllers to monitor local cells.
These local units report up to a master rack controller, which manages the entire high-voltage rack string. At the top level, a system-level controller coordinates all master units. This top tier interfaces directly with central automation systems to protect the entire facility.
The central management system continuously calculates critical operational metrics to keep the system running within safe bounds.
● State of Charge (SoC) tracks remaining capacity, acting like a highly precise digital fuel gauge.
● State of Health (SoH) measures current capacity against original factory conditions, highlighting asset degradation.
● State of Energy (SoE) estimates total available energy output, accounting for real-time thermal conditions and discharge rates.
Accurate tracking prevents deep discharge failures and overcharging events. Overcharging causes internal short circuits, while over-discharging permanently ruins cell chemistry. Accurate data keeps operations within optimal parameters.
Individual cells naturally develop slight operational variances over time. Left uncorrected, the weakest cell limits the performance of the entire group. Management systems use specific cell balancing protocols to resolve these discrepancies.
Passive balancing dissolves excess energy from higher-charged cells as heat through simple resistors. It is a cost-effective, reliable approach, but it wastes energy. Active balancing uses specialized capacitive or inductive circuits to shift excess charge from stronger cells to weaker ones. This method preserves energy and extends the operational lifespan of the pack.
Batteries perform best within narrow temperature zones. Thermal management systems use different techniques to maintain these sweet spots. Forced air cooling designs utilize heavy-duty HVAC systems to circulate conditioned air through the enclosure. Air systems cost less upfront but struggle with temperature uniformity in high-density installations.
Liquid cooling mechanisms route dedicated coolant plates directly past modules. Liquid has a higher heat capacity than air, enabling superior thermal regulation. This approach requires higher initial capital expenditure (CAPEX) but delivers lower operational overhead (OPEX) by optimizing cell longevity.
Poor thermal management can allow localized hot spots to develop. If a hot spot triggers a self-sustaining chemical reaction, it can cause thermal runaway. This hazard releases toxic gasses and can cause intense fires that cross adjacent racks.
To prevent these events, systems must maintain strict temperature uniformity across all rows. Enclosures must align with global safety standards like NFPA 855 and UL 9540A. These certifications guarantee the structure includes proper deflagration venting and integrated fire suppression to protect nearby infrastructure.
The Energy Management System (EMS) acts as the high-level economic brain of the installation. It oversees localized control setups and manages communication with external networks. The software processes external data inputs, such as weather forecasts and grid demand signals, to optimize performance.
The software converts these data streams into actionable dispatch commands. It tells the conversion equipment exactly when to charge from local solar arrays or discharge into the grid, ensuring the facility responds dynamically to real-time local conditions.
Smart management software optimizes revenue generation by balancing multiple application tracks simultaneously. It switches between different operational strategies based on volatile market pricing.
● Energy Arbitrage: Charging units when electricity prices are low or negative, then discharging during peak pricing windows.
● Peak Shaving: Lowering industrial demand charges by discharging power whenever a facility's power consumption spikes.
● Frequency Regulation: Providing rapid power injections to help utilities maintain stable grid frequencies.
This multi-track approach allows asset operators to maximize daily returns and shorten project payback periods.
Industrial facilities require deep integration with broader utility controls. The software connects local logic boards with utility-scale Supervisory Control and Data Acquisition (SCADA) platforms. This connection relies on standardized industrial communication protocols.
Engineers use Modbus TCP or DNP3 protocols to handle these data flows. Remote telemetry allows off-site engineering teams to track diagnostic points, alter dispatch profiles, and handle emergency shut-offs from central control rooms.
Standard local monitoring hardware excels at managing immediate safety parameters, but lacks the computing power needed for long-term health tracking. Cloud-based predictive analytics platforms fill this gap by leveraging machine learning algorithms to process massive historical datasets.
These cloud systems create highly detailed digital twins of physical battery assets. By running continuous simulations, they identify subtle performance anomalies that standard edge hardware misses. This capability allows operators to detect internal cell shorts weeks before they cause a hardware failure.
Predictive modeling shifts operational frameworks from reactive troubleshooting to planned operations and maintenance (O&M). Instead of responding to unexpected hardware shutdowns, field crews receive automated notifications to swap degrading components during scheduled low-demand windows.
This proactive approach protects equipment warranties and maintains asset valuation. Clean performance records provide verifiable proof of system health, preserving residual asset value if the installation is sold or refinanced.
Building an efficient and secure energy storage facility requires the precise integration of every core component. This process starts with selecting the right electrochemical cells and arranging them into scalable module and rack hierarchies. Operators must pair this hardware with high-efficiency Power Conversion Systems and smart Battery Management Systems to protect the installation. To maximize performance, systems should integrate intelligent Energy Management Systems and predictive cloud analytics. For long-term reliability, choosing premium components engineered for demanding conditions is essential. Discover how Xiamen GTL Power System Co., Ltd provides high-performance infrastructure solutions designed to optimize your energy resilience. Their expert engineering teams help configure tailored component architectures optimized for utility-scale projects and industrial microgrids.
A: The primary battery energy storage system components that scale capacity are individual battery cells, which are grouped in parallel into modules and arrays.
A: Thermal systems prevent hot spots among battery energy storage system components, mitigating thermal runaway risks and maintaining safe BESS operating temperatures.
A: A BESS needs a conversion system because internal battery energy storage system components operate on DC, while the utility grid utilizes AC power.
A: The BMS acts as a digital sentinel across all battery energy storage system components, monitoring real-time safety, cell balance, and BESS health states.
